Description

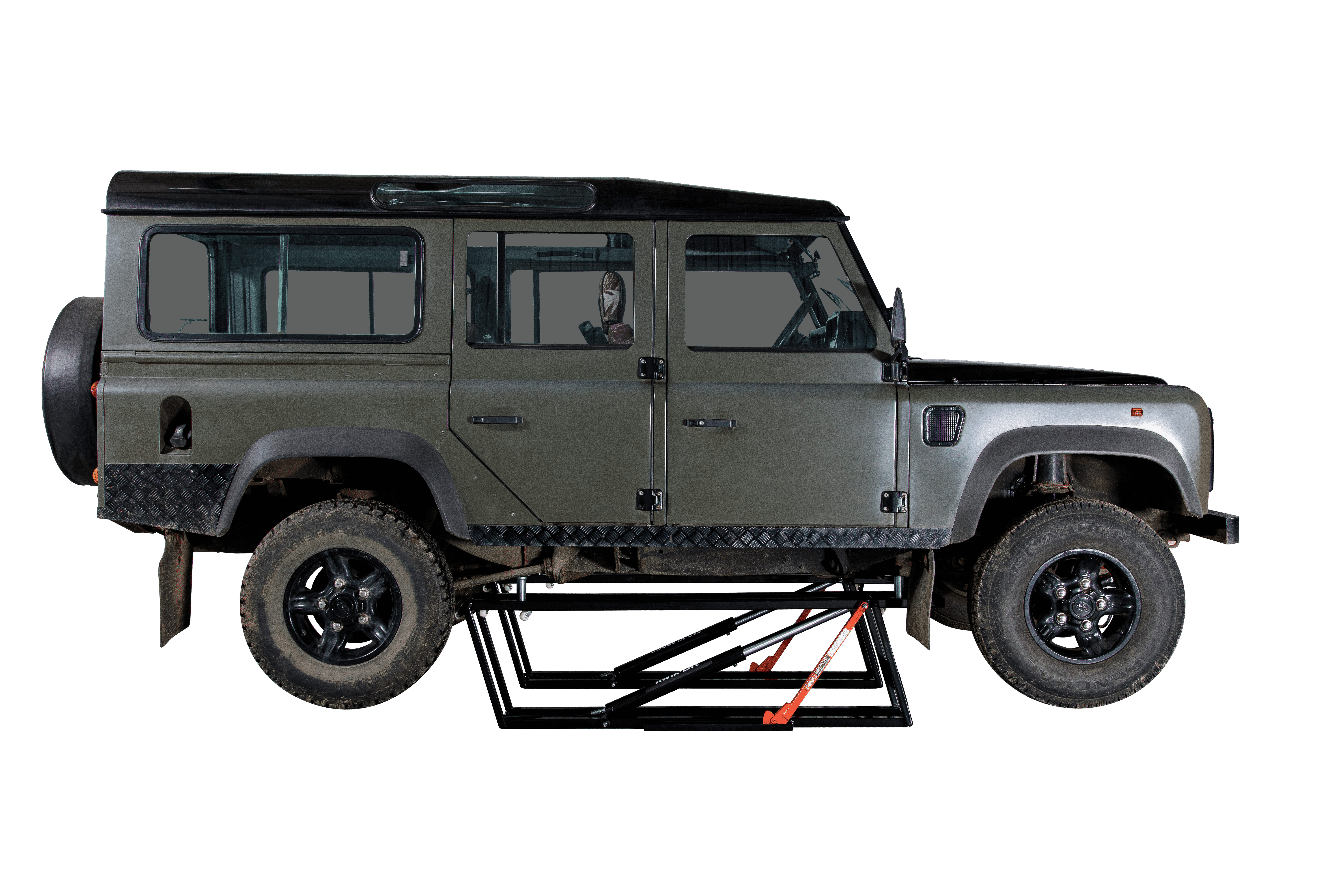

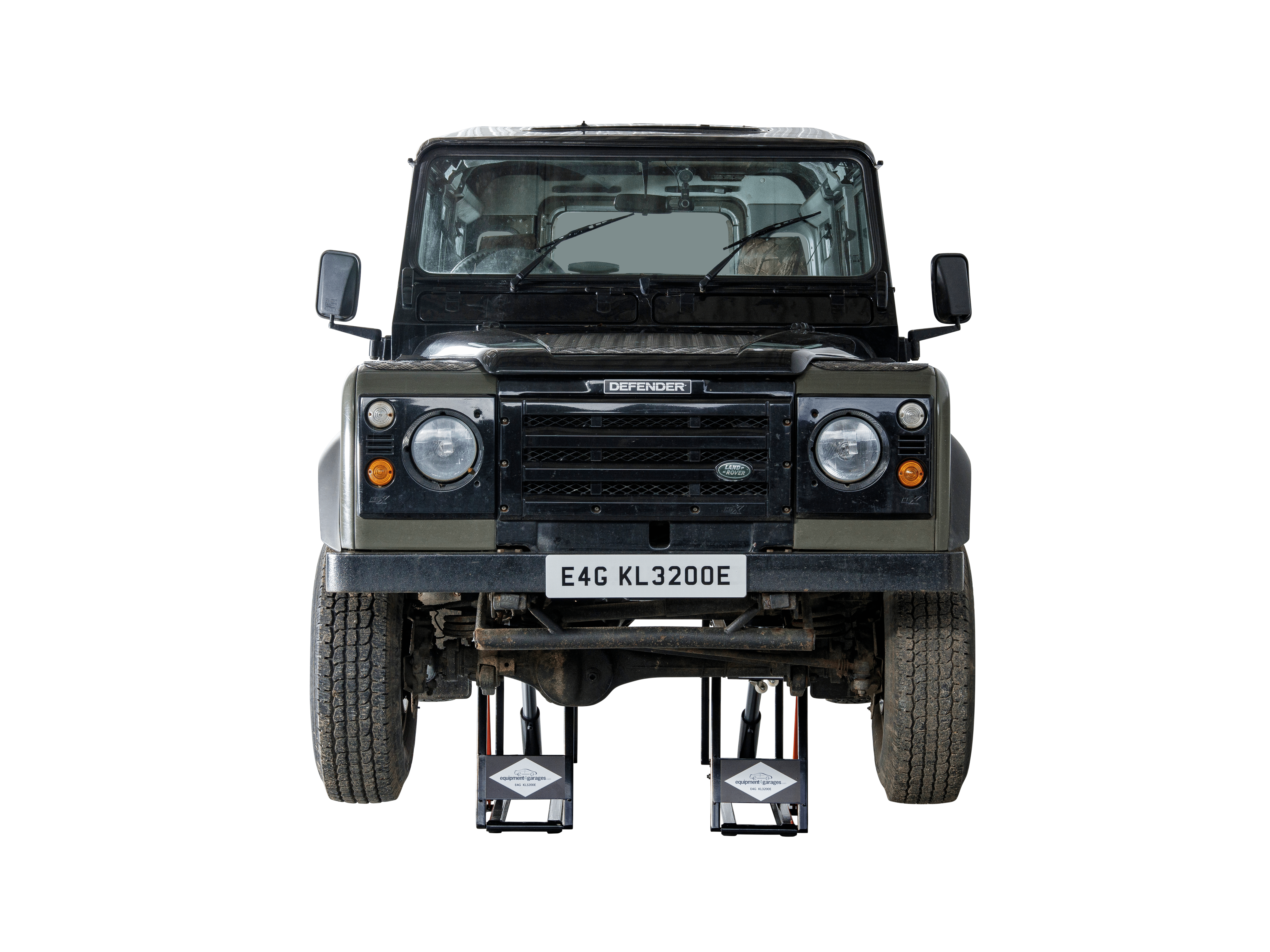

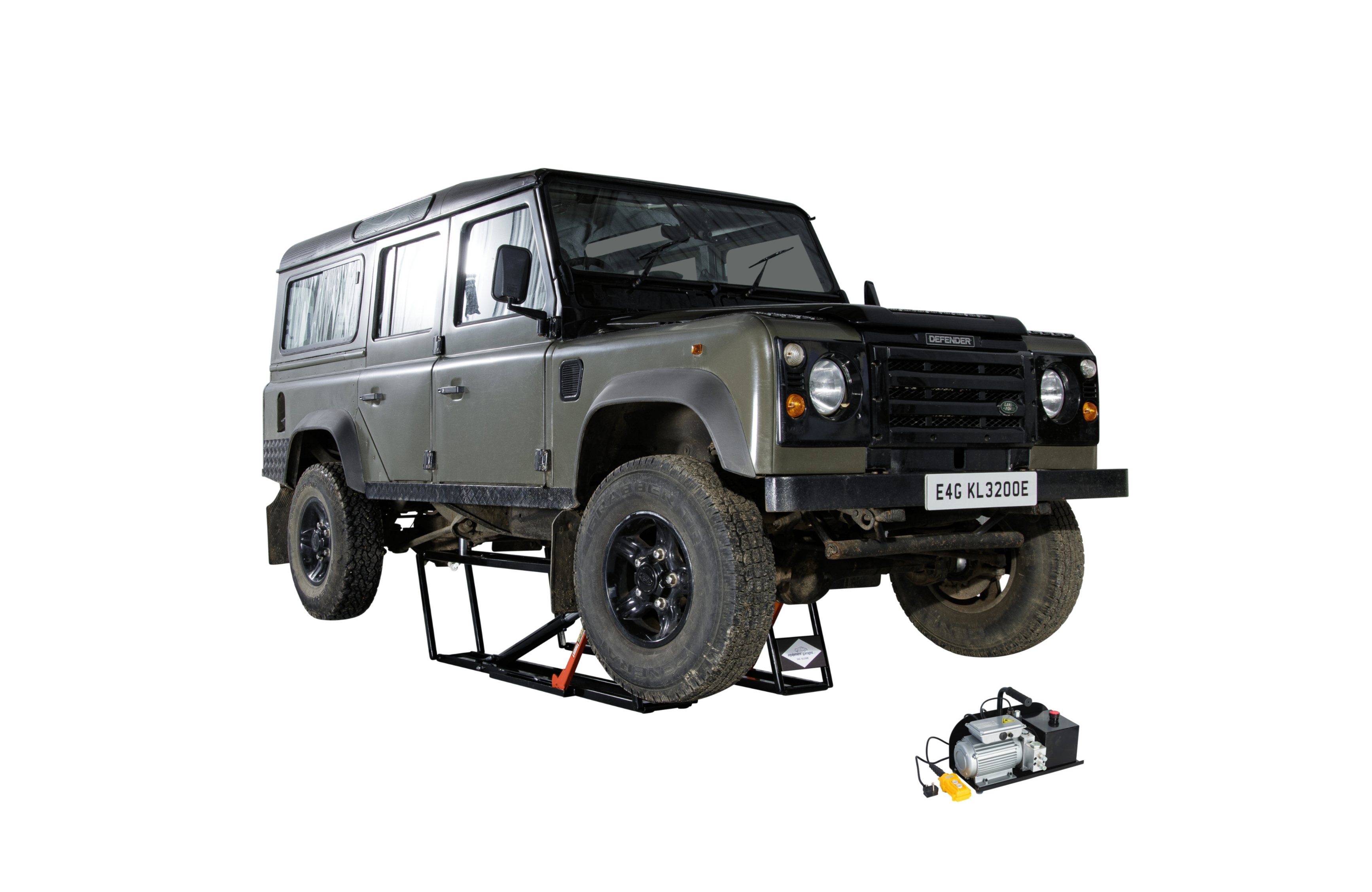

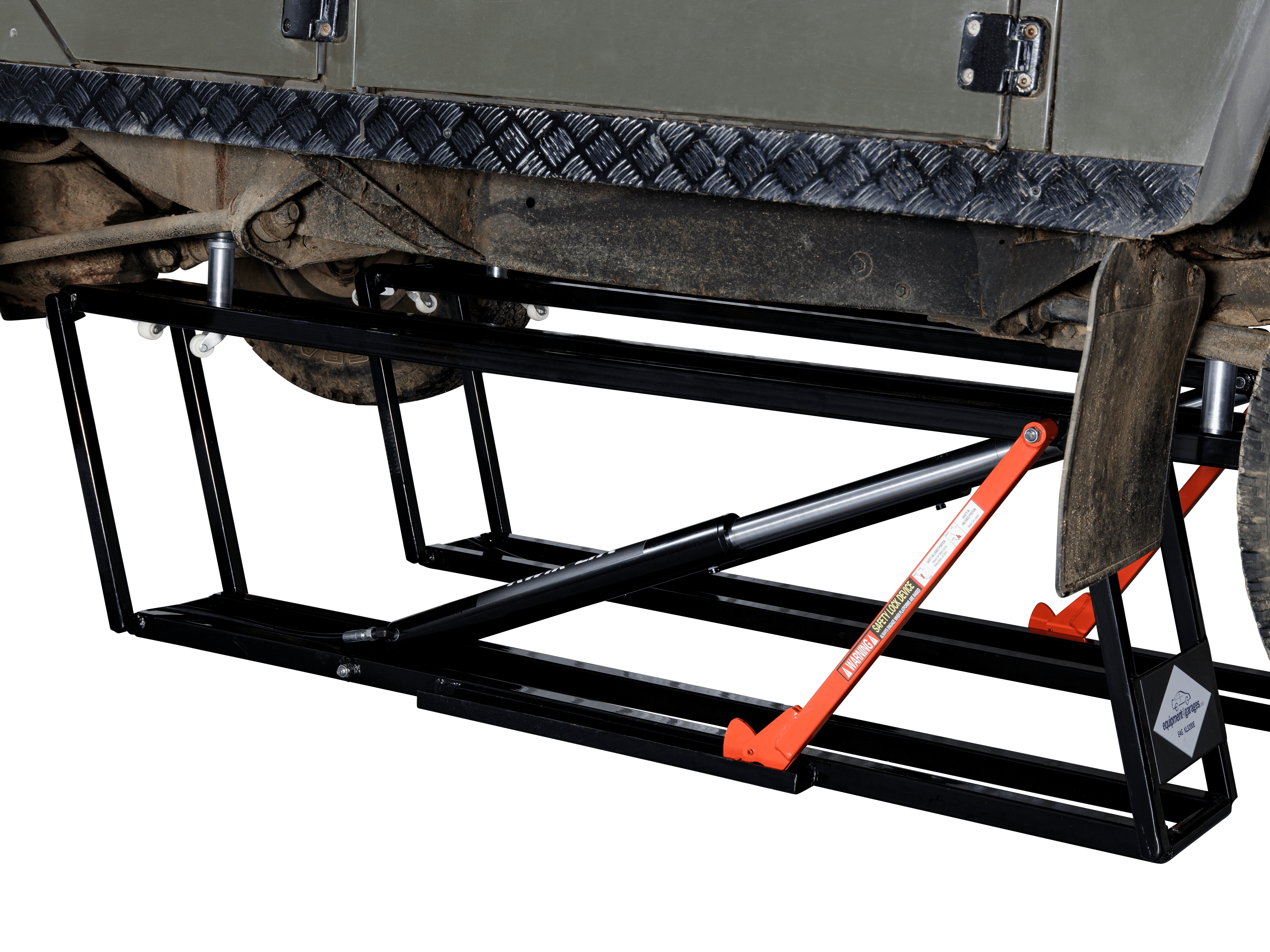

The E4G KL3200E-AC Kwik Lift ^® ( For longer and heavier vehicles. It has increased lifting height and a very long jacking point range ) has a lifting capacity of 3200kg. The jacking point range is 1406mm to 1932mm and it has a lifting height of 536mm. Collapsed height is 88mm.

E4G KL3200E-AC features a AC220V Motor which offers a higher efficiency. We also have the same model available in DC12V motor which can run remotely off a car battery.

Please note: Hydraulic Oil and Height adapters are not included with the lift.

Features

• AC220V Motor
• Easily portable and light weight design
• Low height of just 80mm and working height of 450mm without blocks
• Omni directional wheels for manoeuvrability and sliding the frames under the car
• No air tanks to keep topped up
• 2 Locking positions: 310mm & 450mm

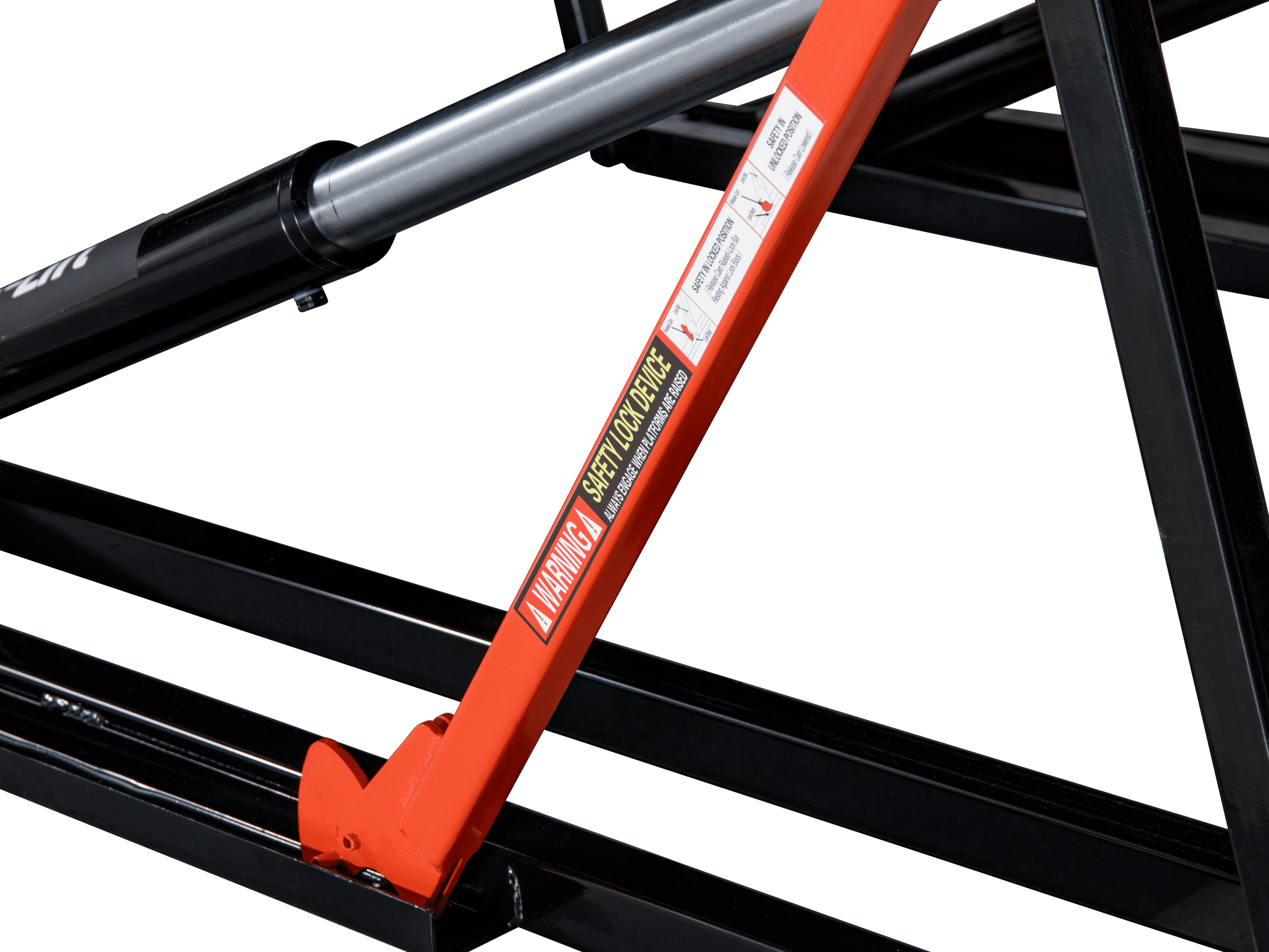

• Visual locks (one on each side)
• Rubber blocks (4) supplied 120x100x50mm high
• CE approved

Specification

• Lifting Point Range: 1406mm-1932mm
• Lifting Capacity: 3200kg (7054 LBs)
• Lifting Height: 536mm (without blocks)
• Lifting Time: 42 sec
• Motor: AC220V
• Overall Length: 2200mm
• Frame Width: 320mm x 2
• Platform Length: 2200mm
• Oil Tank Capacity: 4L
• Gross Weight: 100 KG
• Collapsed Height: 88mm & 121mm (Using Rubber Blocks)
