Description

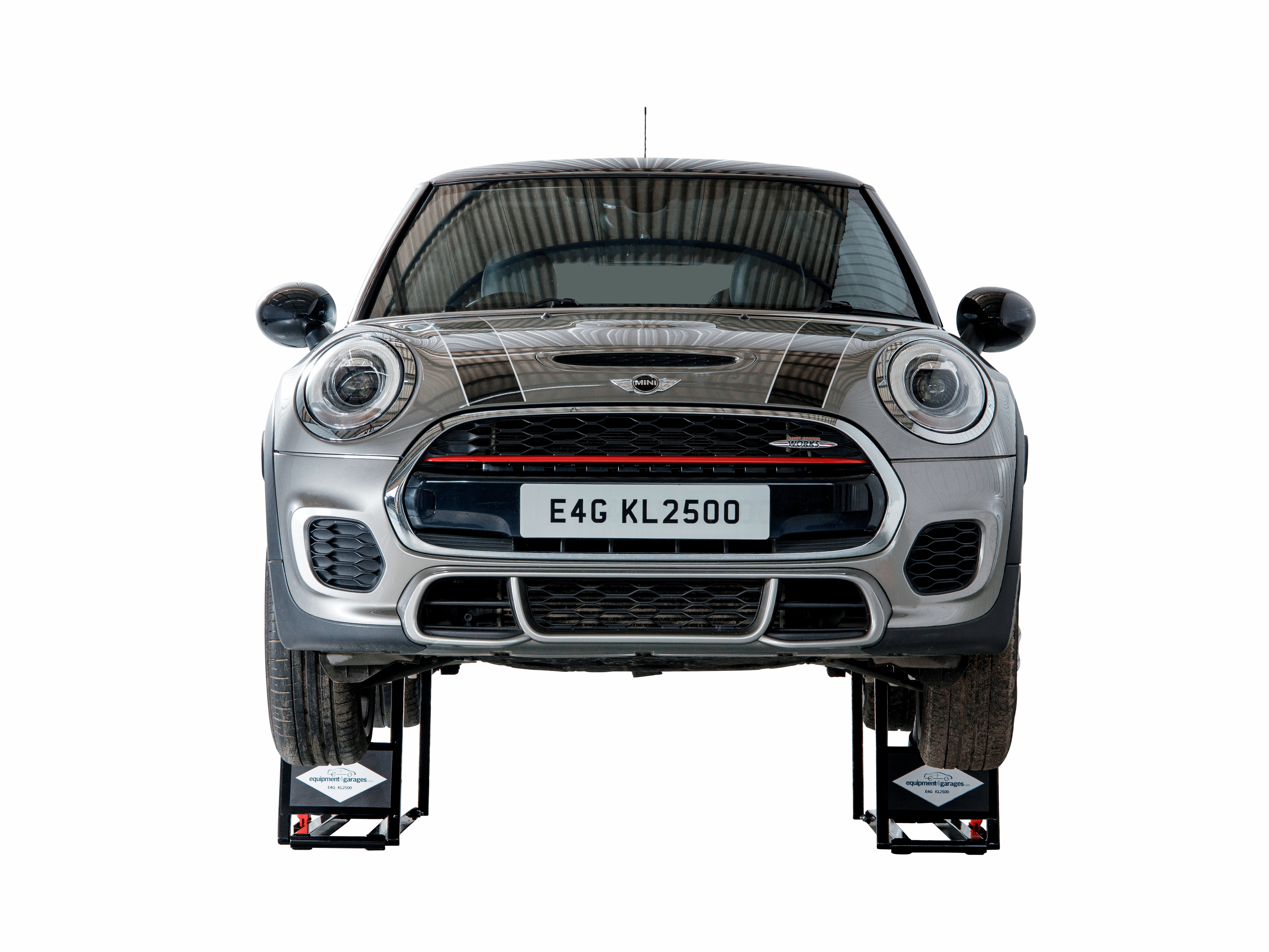

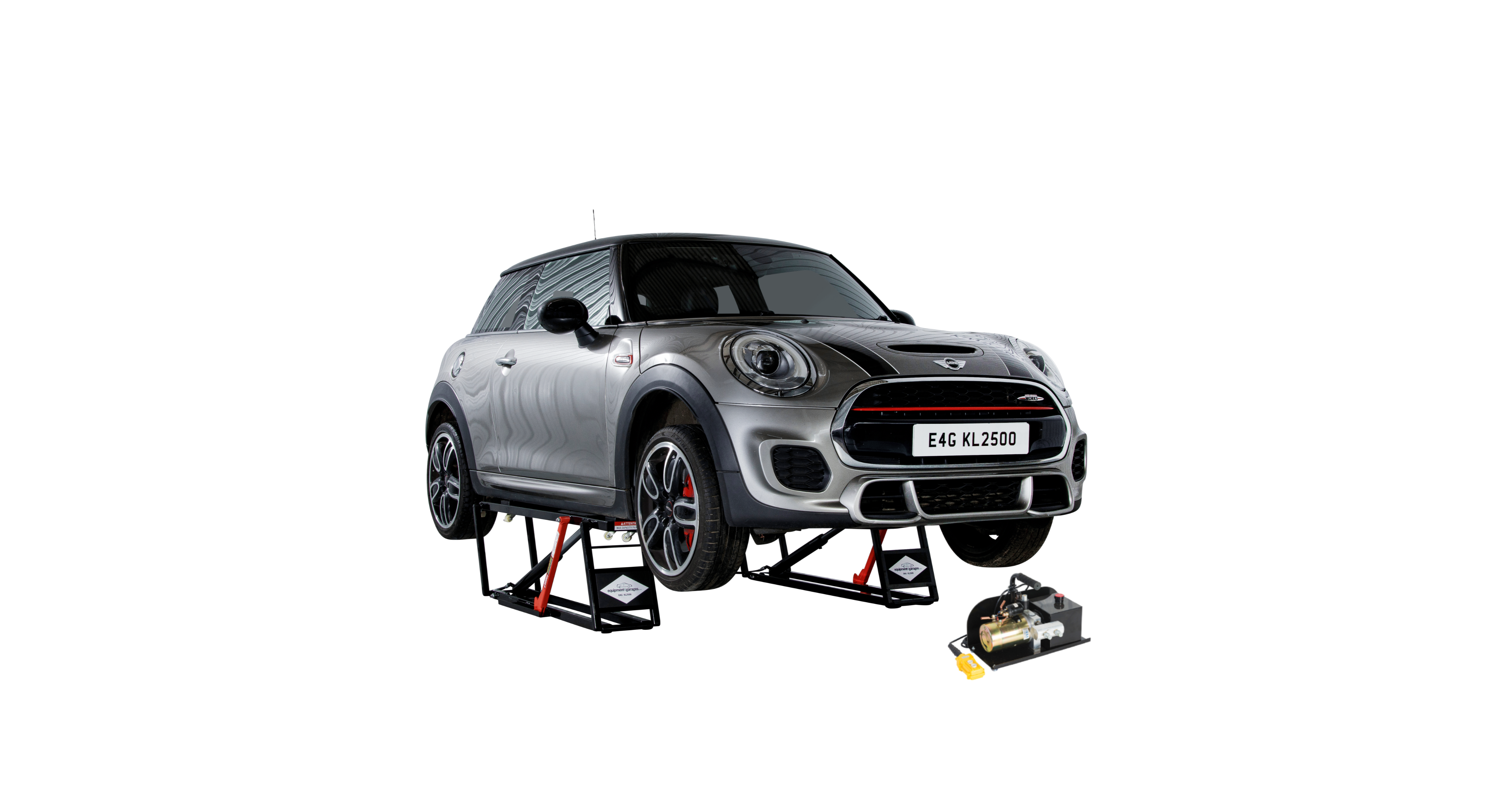

The E4G KL2500-DC ( For average sized cars and the most popular model ) is our entry model with a 2500kg lift capacity and a jacking point range from 835mmm to  1432mm and a lifting height of 460mm without rubber blocks. (It is the same specification as the E4G KL3500, but with lower lifting capacity) Collapsed height 88mm. Note: The jacking point range can be increased using the E4G 301 extensions from 951mm to 1670mm, but the collapsed height will increase to 164mm when extensions are used.

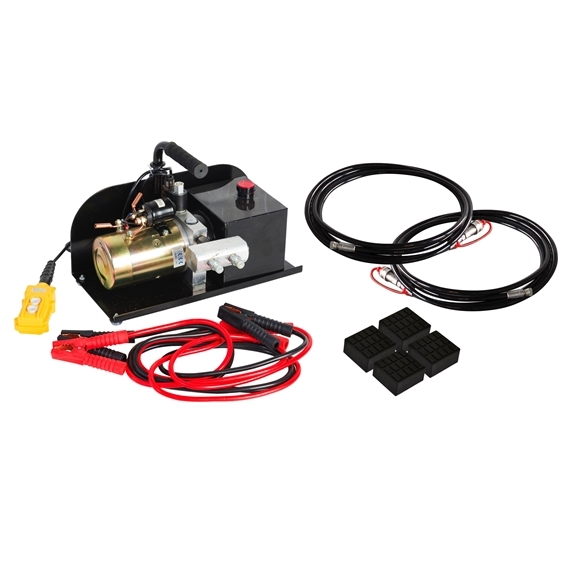

E4G KL2500-DC – Features a DC12V motor which can run remotely off a car battery. We also have the same model available in AC22OV motor.

Please note: Hydraulic Oil is not including with the lift.

Features

• DC12V Motor
• Easily portable and light weight design
• Low height of just 80mm and working height of 450mm without rubber blocks
• Omni directional wheels for manoeuvrability and sliding the frames under the car
• No air tanks to keep topped up
• 2 Locking positions: 310mm & 450mm
• Visual locks (one on each side)
• Rubber blocks (4) supplied 120x100x50mm high
• CE approved

Specification

• Lifting point range: 835mm-1432mm
• Lifting Capacity: 2500kg (5511 LBs)
• Lifting Height (without rubber blocks): 460mm
• Lifting time: 35 seconds
• Motor: DC12V
• Overall length: 1746mm
• Frame width: 315mm x 2
• Platform length: 1468mm
• Collapsed Height: 88mm & 121mm (Using Rubber Blocks)
• Oil Tank Capacity: 4L
• Gross weight: 100kg
